General Info

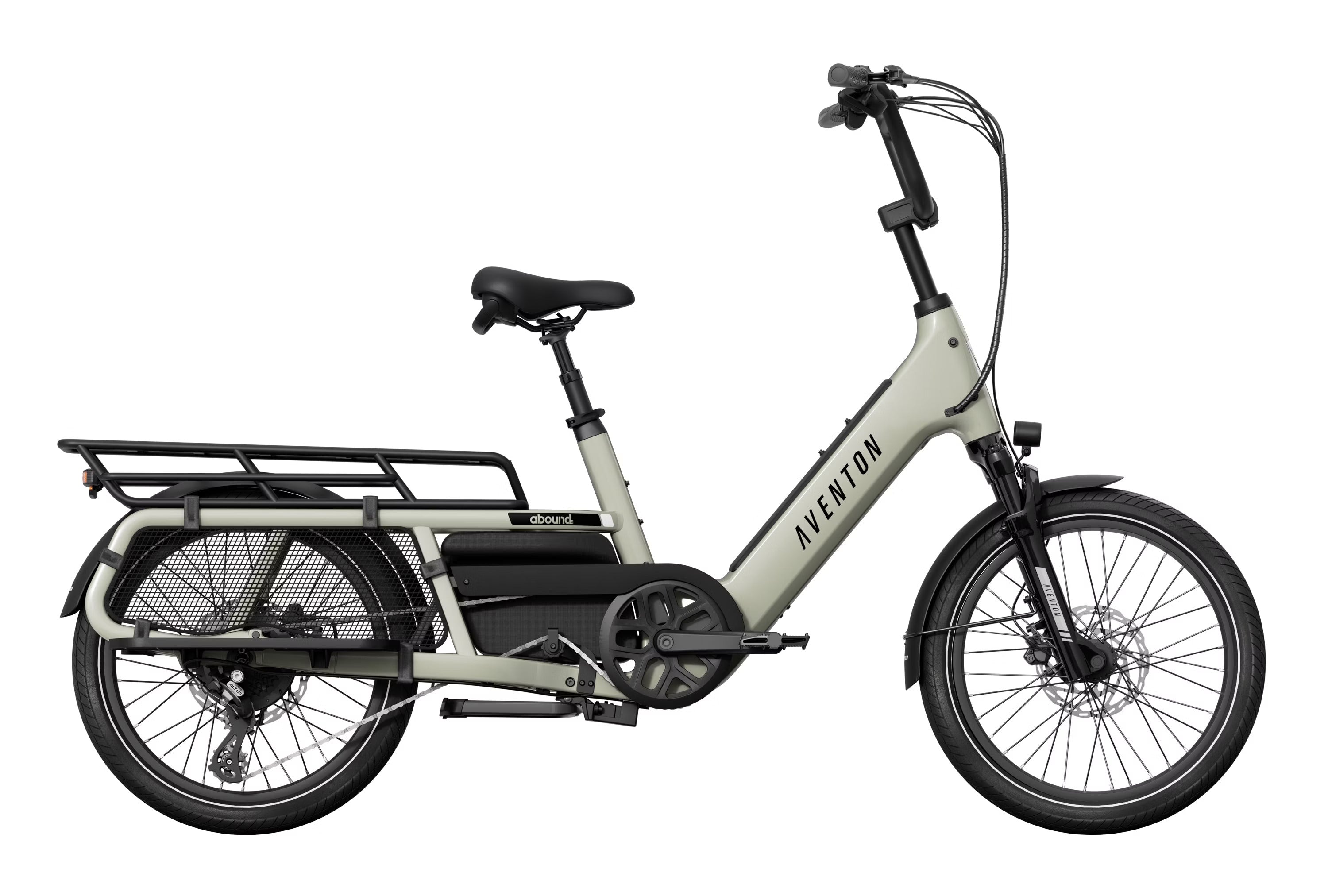

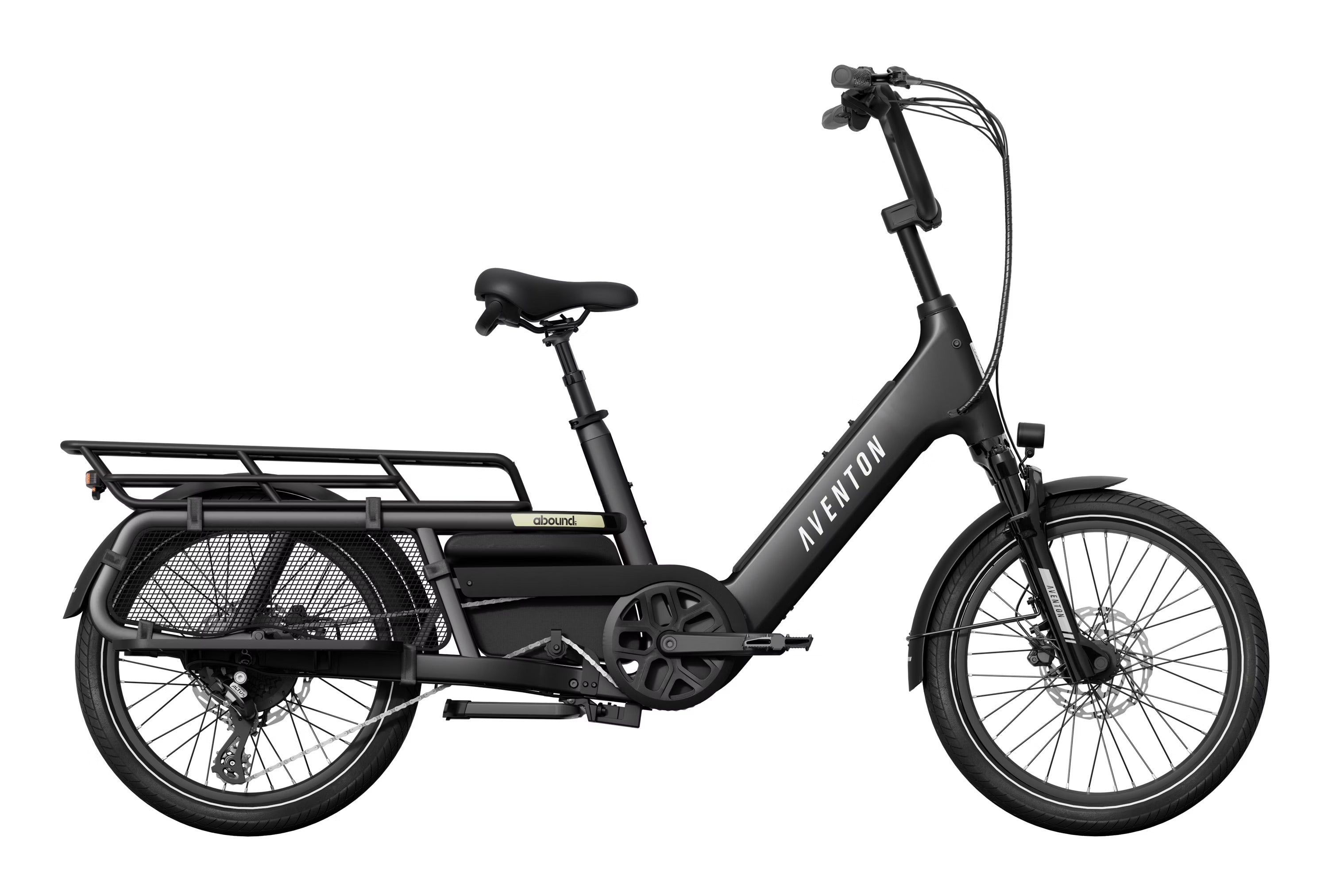

• Model: Abound LR Ebike
• Weight: 88 lbs
• Total Weight Limit: 440 lbs
• Rider Height: 4'11" - 6'3"
• Class: Class 2 Ebike
• Water Resistance: IPX4
• Range: Up to 60 miles
• Battery Safety Certifications: Certified to UL 2271
• Safety Certifications: UL and TUV Safety Certified, UL 2849

Frameset

• Frame: Gravity Cast 6061 Single-Butted Aluminum Alloy with Internal Battery
• Fork: Threaded Steerer Tube for Quill Stem 15x110 spacing, 51mm travel, adjustable lockout black stanchions
• Rear Spacing: 175mm
• Fork Spacing: 110mm

Wheelset

• Front Wheel:
  • Double Wall Aluminum
  • 20in, 36hole, 13g
  • 20x110 Thru Axle
  • Schrader Valve
• Rear Wheel:
  • Double Wall Aluminum
  • 20in, 36hole, 12g
  • Nutted Hub Drive Motor
  • Schrader Valve
• Tires: 20x3.0 Innova IA-2131 Urban Tire with Reflective Sidewalls

Ebike System

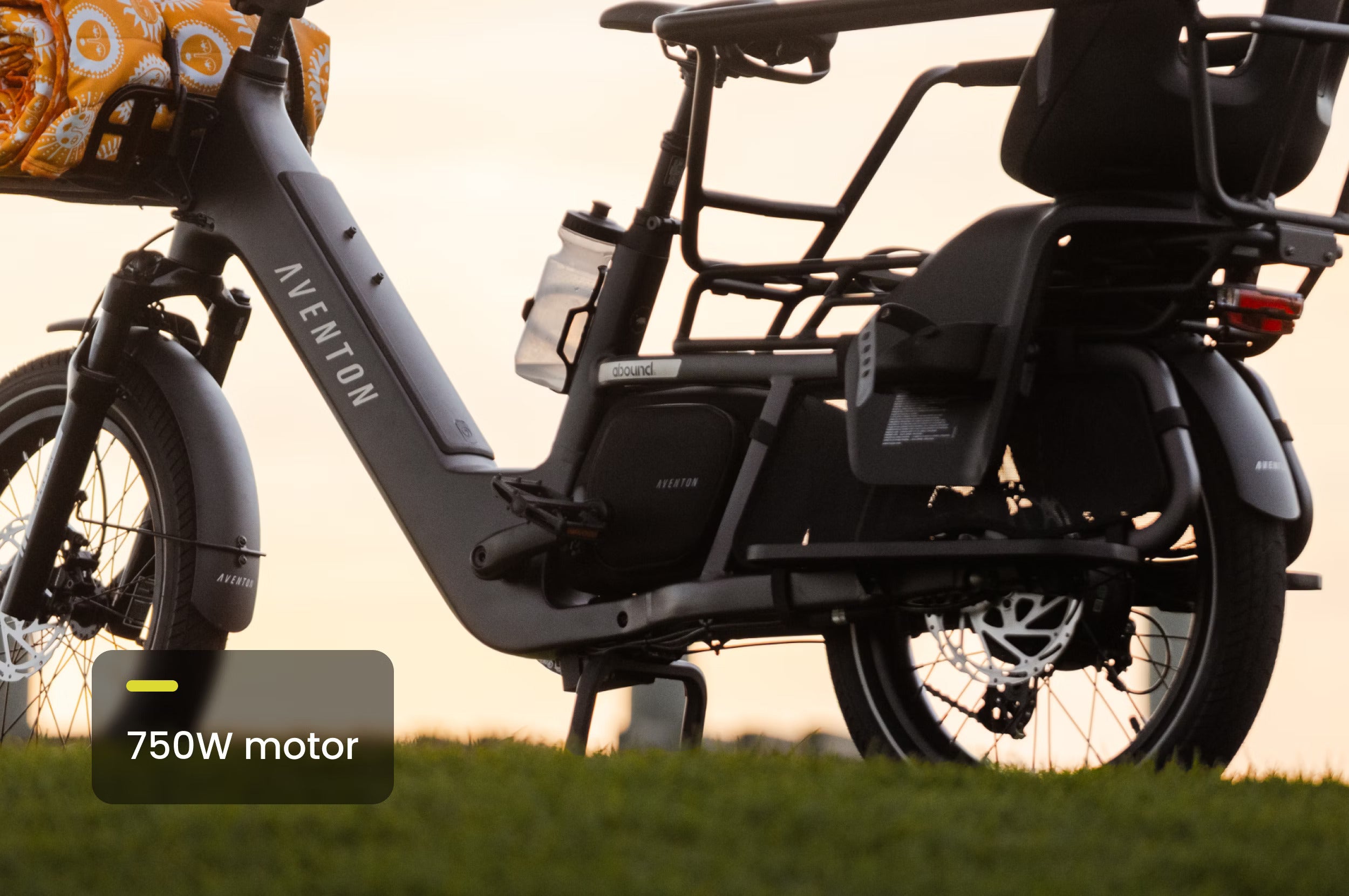

• Motor: Shengyi 36V 750W Hub Drive with 6 speed sensors (1188W peak)
• Motor Torque: 80Nm
• Display: Aventon BC147
• Battery:
  • Removable Internal Lithium-ion
  • 36V, 20Ah, 733Wh, LG 21700 cells
• Battery Weight: 8.7lbs
• Controller: 36V/33A
• Throttle: Aventon LH Handlebar Mounted
• Sensors: Double-Sided Bottom Bracket Torque Sensor
• Charger: 36V Output: 42V/4A
• Charging Time (0% to 100%): 5 hours
• Lights: Front and Rear Lights Integrated with Turn Signals

Brakes

• Front Brake: Tektro HD-E3520 hydraulic disc brakes with EJ1 quick disconnect wire
• Rear Brake: Tektro HD-E3520 hydraulic disc brakes with EJ1 quick disconnect wire
• Front Brake Rotor: 180mm 6-bolt
• Rear Brake Rotor: 203mm 6-bolt

Drivetrain

• Rear Derailleur: Shimano Altus RD-M310 8 Speed
• Shifter: Shimano 8 Speed Trigger SL-M315-8R
• Chain: 7/8 speed 154L
• Cassette: 12-32T / 8 Speed Shimano CS HG200-8
• Chainring: 52 tooth
• Chainring BCD: 104
• Crank: 3pc, 165mm crank arm
• Bottom Bracket: Square Taper, Sealed, Dual-Sided Torque Sensor
• Pedals: 9/16" Composite Platform

Cockpit

• Saddle: Aventon Saddle with grab handle by Selle Royal
• Seatpost: Aventon Suspension Seatpost, Ø 30.9mm, 350mm Length, 50mm travel
• Seatpost Clamp: 34.9mm
• Handlebars: BMX Style Aluminum 31.8mm, 720mm
• Grips: Aventon Ergonomic Comfort lock-on grips
• Headset: H886HW Peilin 28.6mm * 56mm * 56mm H19.5mm 6pcs

Included Accessories

• Fenders: Included
• Rear Rack: Included
• Rear Rack Weight Limit: 143 lbs
