DJI E-Port V2 Development Kit
Product Details
DJI E-Port V2 Development Board
The DJI E-Port V2 Development Board converts the aircraft’s E-Port V2 into multiple standard hardware interfaces and features an onboard MCU, making it easier for developers to connect hardware devices and perform SDK development and debugging.
Key Features
- Converts the aircraft's E-Port V2 into multiple standard hardware interfaces
- Onboard MCU for development and debugging
- Designed for hardware integration and SDK development
- Multiple power output interfaces for connected payloads
Specifications
| Specification | Details |
|---|---|
| Development Board Dimensions | 89 × 60 × 13.4 mm |
| XT30 VCC Output | 13.8 V / 17.02 V / 24 V, 5 A |
| XT30 12V Output | 12 V / 4 A |
| XT30 5V Output | 5 V / 4 A |
| Compatibility | DJI Matrice 400 |

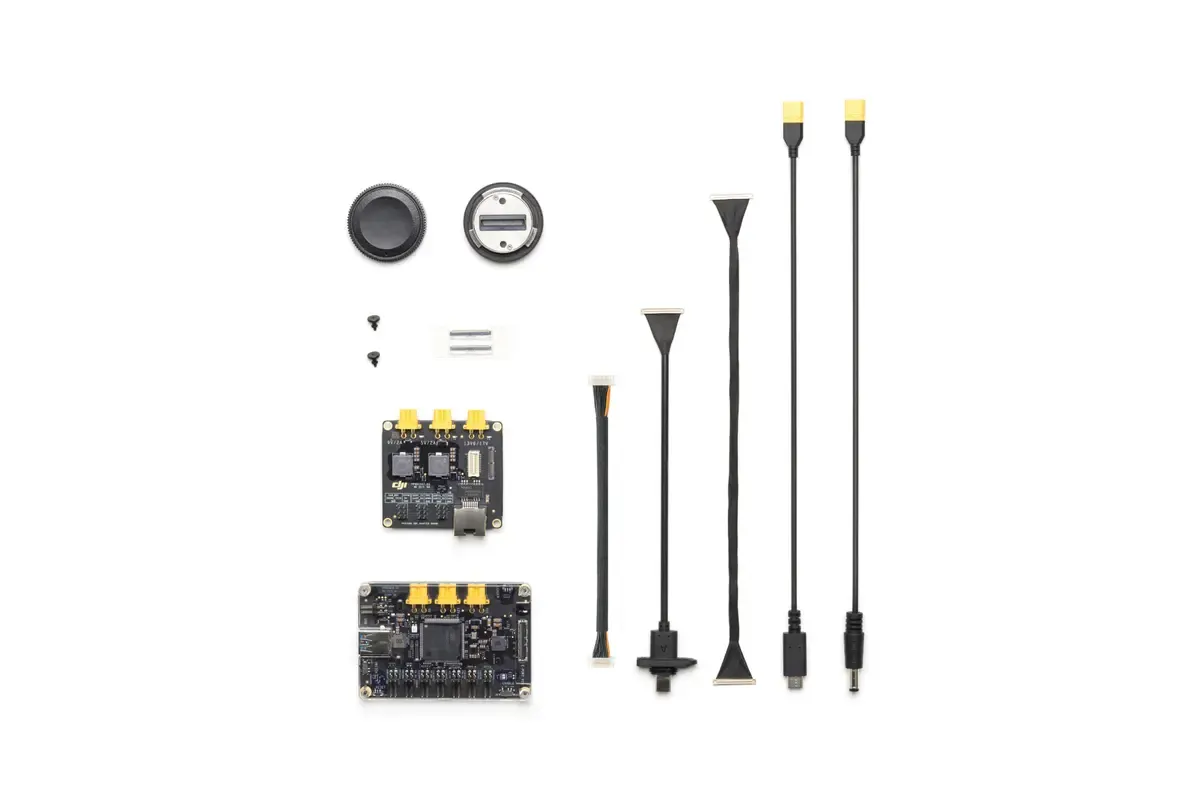

What's Included
- DJI E-Port V2 Development Board × 1
- DJI E-Port V2 Coaxial Cable × 1
- XT30 to DC5.5 Power Cable × 1
- XT30 to USB-C Power Cable × 1
- SKYPORT V3 Coaxial Cable × 1
- SKYPORT V3 Coaxial Cable Connector Terminal × 2
- SKYPORT V3 Adapter × 1
- X-Port Adapter Board × 1
- X-Port Electronic Cable × 1
Tips
- For development information, visit the DJI Developer website or contact dev@dji.com.
- When integrating the adapter board into a finished payload, design a heat sink and metal enclosure.
- If sparks, smoke, a burning smell, or other abnormalities occur after powering on, immediately turn off the power.
- When using all three XT30 power output ports simultaneously, total output power must remain below the aircraft's maximum single-port output. Develop payloads within the specified output limits.
