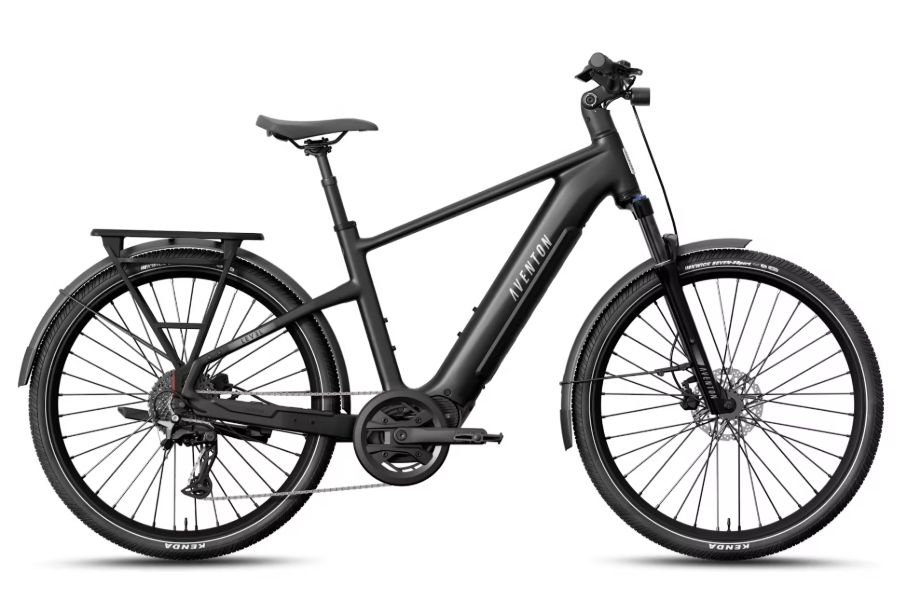

Aventon Level 4 ADV Step-Over
$3,899.00
NEW
Color:Matte Black
Matte Black: Pre-order
Camouflage: Pre-order
Size
Pre-order
Pre-order
Pre-order
Out of stock, available for pre-order
Aventon Level 4 ADV Step-Over
Product Details
The Level 4 ADV elevates the commuting experience with mid-drive performance and refined control. Powered by Aventon’s Ultro S motor with 100Nm of torque and paired with a Shimano CUES 10-speed drivetrain featuring Aventon’s E-Shifter and Autoshift technology, it delivers a natural pedaling feel and efficient power delivery across varied terrain. The ADV adds lightweight balance, responsive handling, and a premium feel, making it ideal for riders who want performance and sophistication without complexity. For those seeking the next level of connection, comfort, and control, the Level ADV represents the pinnacle of Aventon’s commuter design.
Specifications
General Info
- Bike Weight: 61 lbs
- Max Capacity: 300 lbs
- E-Bike Class: Class 1 (Convertible to Class 2 / Class 3)
- Range: Up to 175 Kms
- Water Resistance: Bike IPX6 / Motor IP67
- Safety Certification: UL 2849
- Battery Certification: UL 2271
Sizing
- Rider Height:
- Medium: 5'3" – 5'10"
- Large: 5'10" – 6'4"
- Extra Large: 6'4" – 6'7"
- Bike Weight: 61 lbs
- Max Capacity: 300 lbs
Frameset
- Frame: 6061 Aluminum
- Fork: 100mm travel, adjustable coil spring with preload + lockout, 15x100mm thru-axle, tapered steerer
- Rear Spacing: 135mm
- Fork Spacing: 100mm
Wheelset
- Front Wheel: 27.5" Double Wall Aluminum, 36H
- Rear Wheel: 27.5" Double Wall Aluminum, 36H
Wheels & Tires
- Tires: Kenda K1052, 27.5" x 2.2"
Ebike System
- Motor: Aventon Ultro S Mid-Drive
- Motor Power: 750W Peak
- Motor Torque: 100Nm
- Battery: 36V, 20Ah, 800Wh (Samsung 21700 58E cells), removable
- Battery Weight: 8.7 lbs
- Display: A280 Center Display
- Throttle: Compatible (not included)
- Charger: 42V 4A
- Charging Time: ~5 hours
Smart Features
- Uphill Start Assist
- E-Shift / Autoshift
- Ride Tune
- 4G / GPS Tracking
- Unusual Activity Detection
- E-Lock
- Hold Mode
- Remote Notifications
Brakes
- Front Brake: Tektro HD-M3120 2-piston hydraulic disc
- Rear Brake: Tektro HD-M3120 2-piston hydraulic disc
- Rotors: 180mm front & rear
- Brake Type: Hydraulic
Drivetrain
- Rear Derailleur: Shimano Cues 10-Speed
- Shifter: E-Shifter
- Cassette: Shimano Cues 11–39T
- Chainring: 48T
- Crankset: 165mm ISIS splined
- Chain: 9/10/11 speed, 126L
- Pedals: 9/16" composite platform
Cockpit
- Saddle: Aventon Saddle
- Seatpost: Aventon Suspension Post, 30.9mm, 50mm travel, 400mm length
- Seatpost Clamp: 34.9mm
- Handlebars: 31.8mm clamp, 680mm width, 30mm rise
- Grips: Aventon lock-on
Included Accessories
- Rear rack
- Fenders
- Integrated front & rear lights
