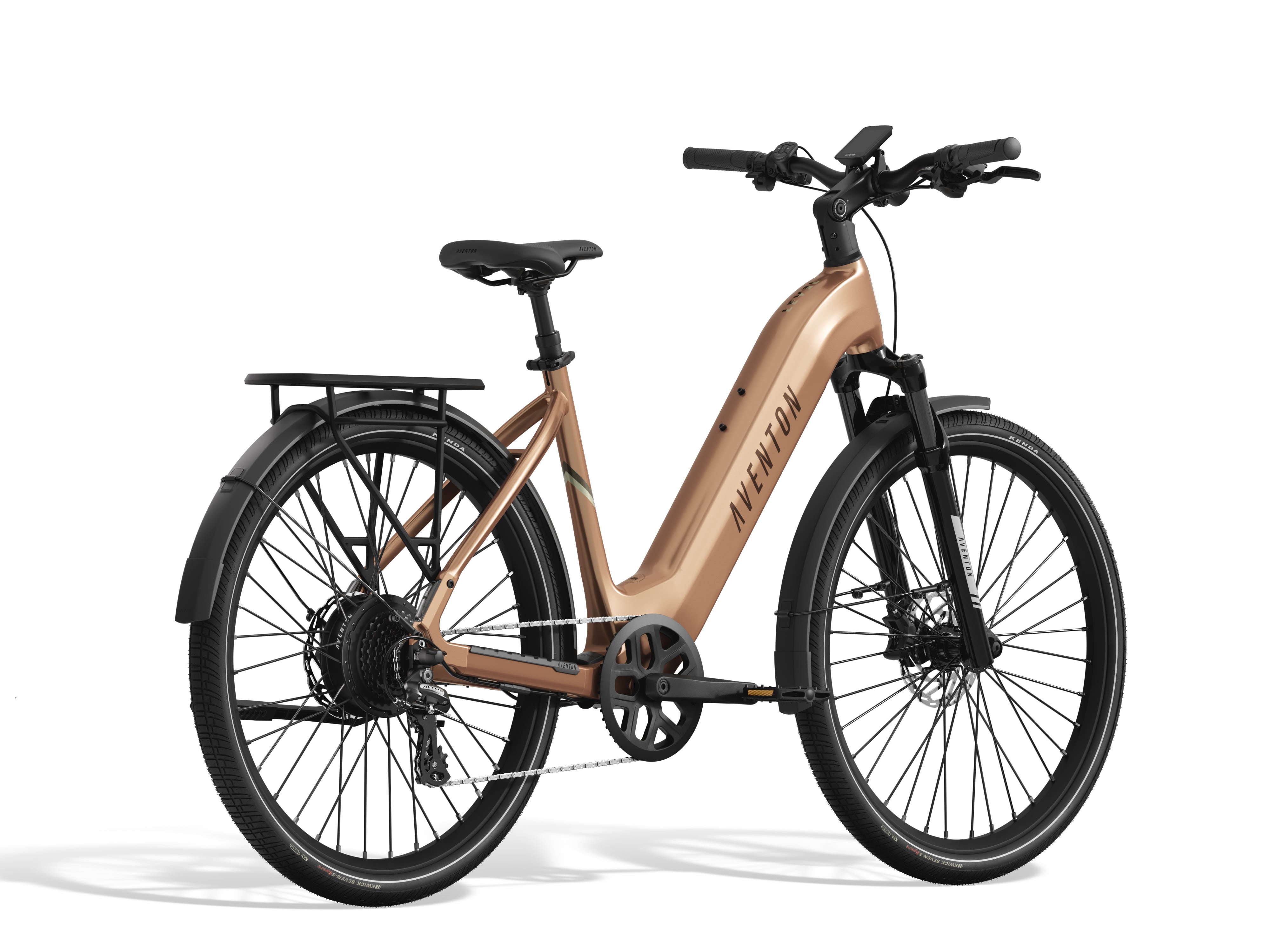

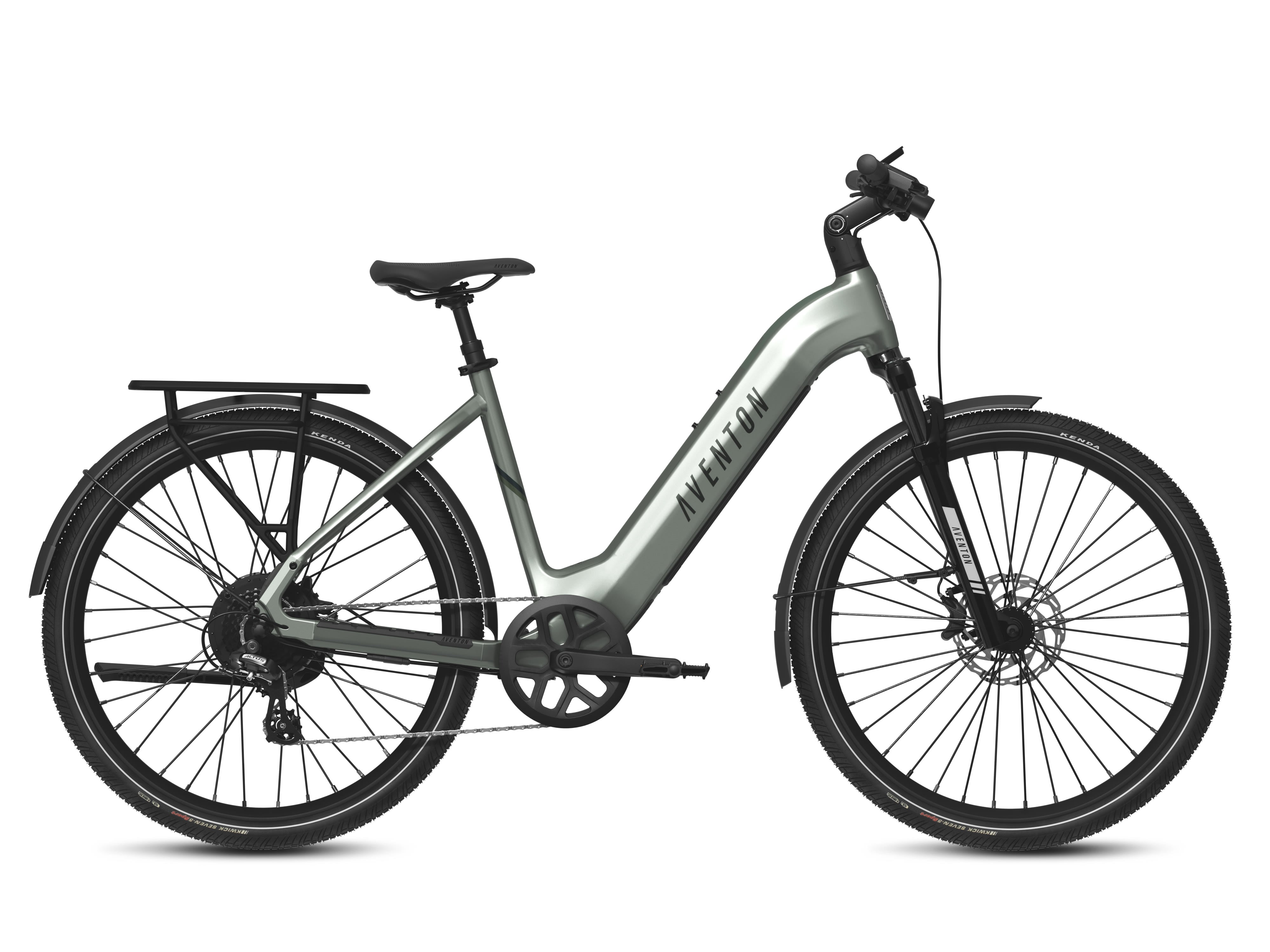

Take your commute to the next LEVEL with the all-new Level 3. Fully equipped for daily rides, it features a rear rack and fenders for convenience, a front suspension fork and suspension seat post for comfort, and ACU technology for security with GPS tracking, auto-lock, and alarms. Its adjustable stem ensures a perfect fit, while Ride Tune capabilities and optimized motor power curves add up to 10 extra miles of range. Ditch traffic and ride smarter with the Level 3!

General Info

• Model: Level 3 Commuter Ebike
• Total Weight Limit: 300 lbs
• Box Size: 61" x 13" x 34"
• Rider Height Range: 5'3" - 6'4"
• Class: Class 2 Ebike
• Water Resistance: IPX4
• Range: Up to 70 miles

Frameset

• Frame: 6061 Aluminum, Gravity Cast Front Triangle
• Fork: Aventon Suspension Fork, 80mm travel, with lockout, coil spring
  • 15x100mm thru-axle
  • 43mm offset
• Rear Spacing: 142mm
• Fork Spacing: 110mm

Wheelset

• Front Wheel:
  • 27.5-inch
  • 13g, 36-hole, double-wall aluminum
  • Thru-axle, Schrader valve, black
• Rear Wheel:
  • 27.5-inch
  • 12g, 36-hole, double-wall aluminum
  • Nutted hub drive motor, Schrader valve, black
• Tires: Kenda Kwick Seven-5 Sport K1052-006, 27.5 x 2.20

Ebike System

• Motor: 36V, 500W (sustained), 864W (peak)
• Motor Torque: 60Nm
• Display: Aventon BC280
• Battery:
  • Removable internal lithium-ion
  • 36V, 20Ah, 708Wh, LG 21700 cells
  • Weight: 8.7 lbs
• Controller: 36V, 24A

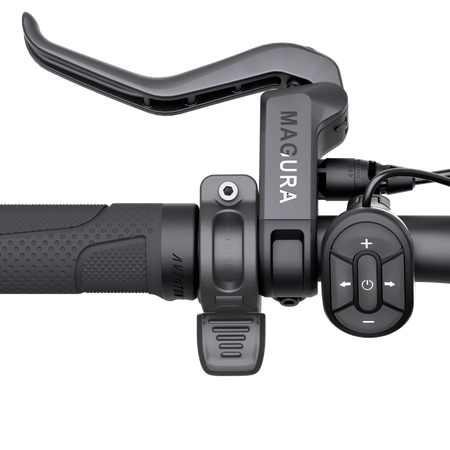

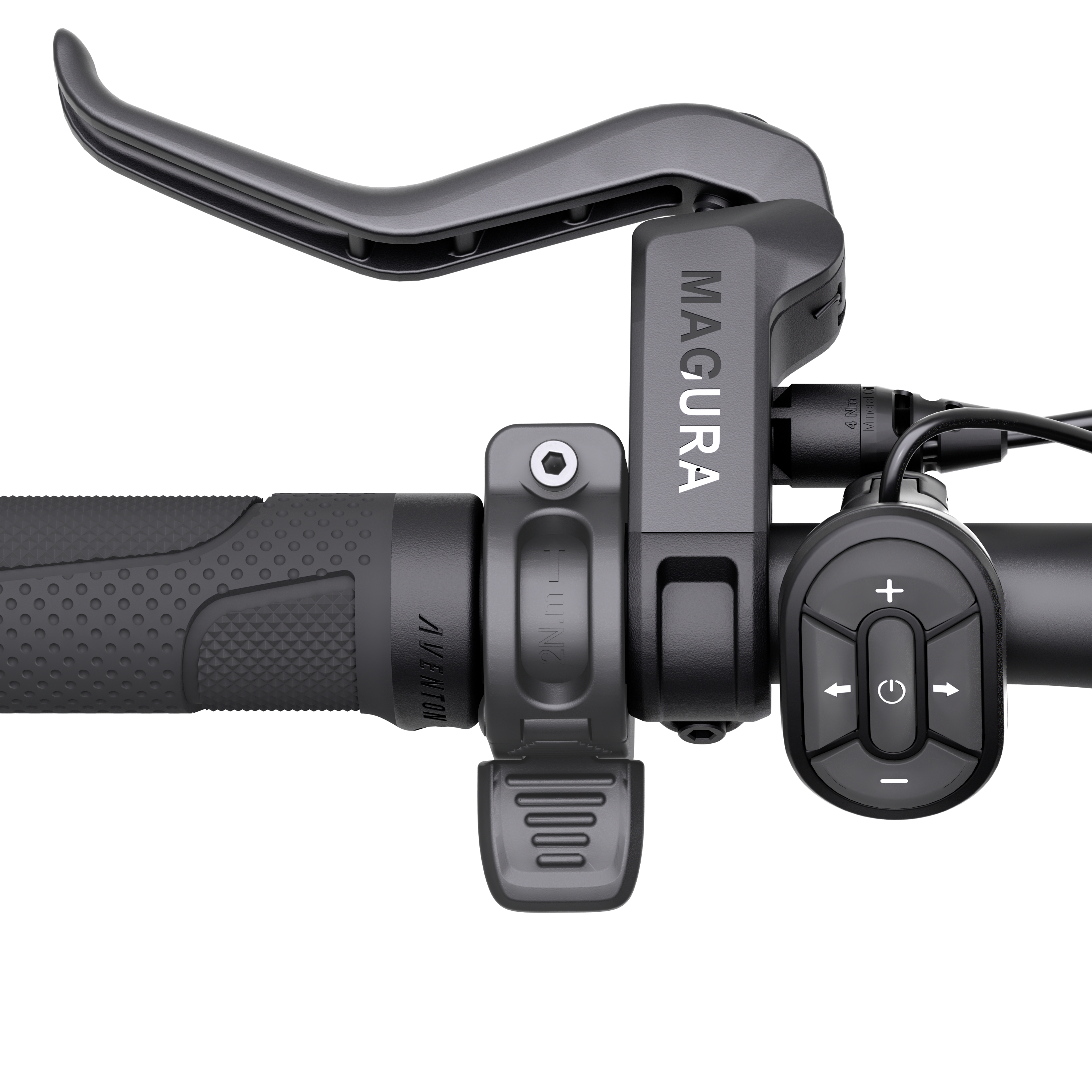

• Throttle: Aventon LH handlebar mounted
• Sensors: Double-sided bottom bracket torque sensor
• Charger:
  • 36V output: 42V / 4A
  • Charging time (0% to 100%): 5 hours

Lights

• Front and Rear Lights: Integrated

Brakes

• Front Brake: Magura AT-2 Hydraulic disc brake
• Rear Brake: Magura AT-2 Hydraulic disc brake
• Front Brake Rotor: Magura MDR-A 180mm, 6-bolt rotor
• Rear Brake Rotor: Magura MDR-A 180mm, 6-bolt rotor

Drivetrain

• Rear Derailleur: Shimano Altus RD-M310
• Shifter: Shimano 8-Speed Trigger SL-M315-8R
• Chain: 7/8 speed, 120L
• Cassette: 12-32T / 8-speed Shimano CS HG200-8
• Chainring: 48T
• Chainring BCD: 104
• Crankset: 3-piece, 170mm crank arm
• Bottom Bracket: Square taper, sealed, double-sided torque sensor (83mm x 158.5mm)
• Pedals: 9/16" composite platform

Cockpit

• Saddle: Aventon Saddle
• Seatpost: 30.9mm Aventon Suspension Seatpost with 50mm travel
• Seatpost Clamp: 34.9mm
• Handlebars: Aluminum, 31.8mm diameter, 680mm width
• Grips: Aventon Lock-on grips
• Headset: Sealed bearing headset

Included Accessories

• Fenders: Included
• Rear Rack: Included
  • Weight Limit: 60 lbs
